Fixing Dowel With Crimped End

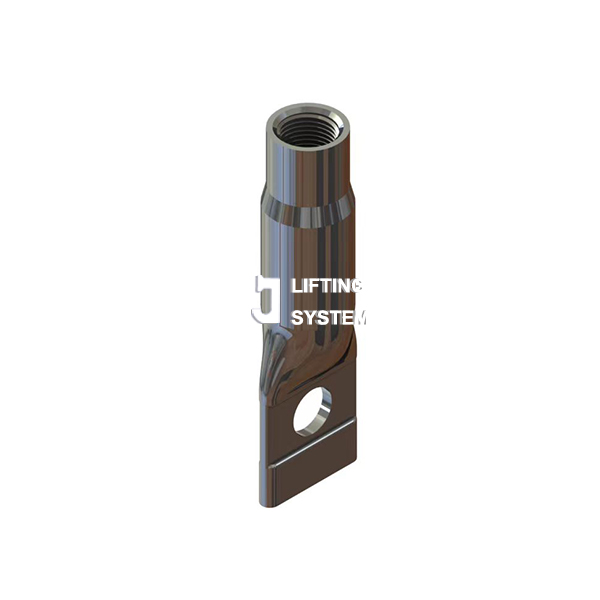

Fixing Dowel With Crimped End/ Fixing Insert with crimped end is used forfixing light precast concrete units. A reinforcement bar must be put through the cross holes to ensure safe transmission of static stresses into the concrete.
Send Inquiry
Product Description
Fixing Dowel With Crimped End/ Fixing Insert with crimped end is used forfixing light precast concrete units. A reinforcement bar must be put through the cross holes to ensure safe transmission of static stresses into the concrete.
|
Size |
S.W.L |
Code |
Dimensions （mm） |
||
|
KGS |
L |
g |
e |
||
|
M8 |
250 |
FS05-08050 |
50 |
8.5 |
8 |
|
M10 |
350 |
FS05-10050 |
50 |
9.5 |
10 |
|
450 |
FS05-10060 |
60 |
|||
|
M12 |
500 |
FS05-12060 |
60 |
10.5 |
12 |
|
600 |
FS05-12070 |
70 |
|||
|
M16 |
800 |
FS05-16080 |
80 |
12.5 |
16 |
|
1000 |
FS05-16100 |
100 |
|||
|
M20 |
1250 |
FS05-20100 |
100 |
14.5 |
20 |
|
FS05-20120 |
120 |
||||
|
M24 |
1700 |
FS05-24120 |
120 |
14.5 |
24 |
