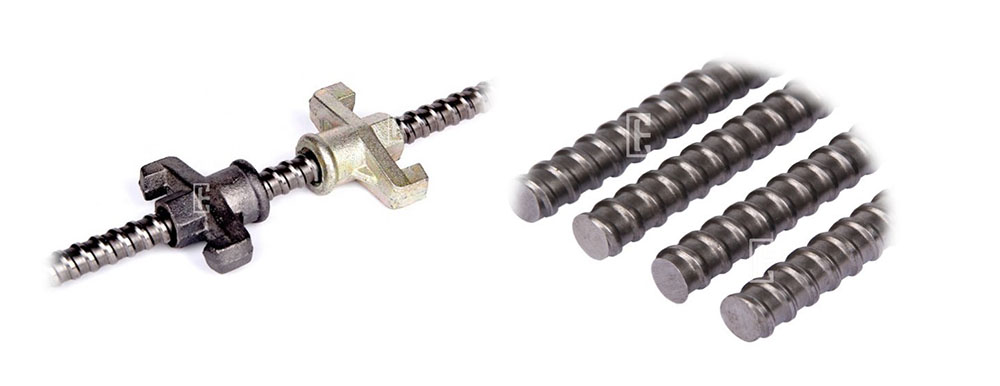

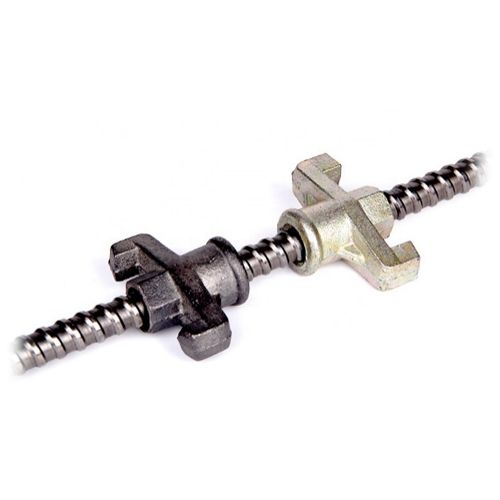

Formwork Steel Tie Rod
Formwork Steel Tie Rod is one kind of the concrete tie rods. It is made of steel #45 or Q235 with different diameters. A lot of related accessories are available, such as hot rolled tie rod, wing nut, tie nut, hex nut, connection nut, water stop, formwork clamp, steel cone, etc. All the tie rods and related accessories are applicable to all kinds of concrete formwork & shuttering system.
Send Inquiry
Product Description
Formwork Steel Tie Rod DETAILS
|

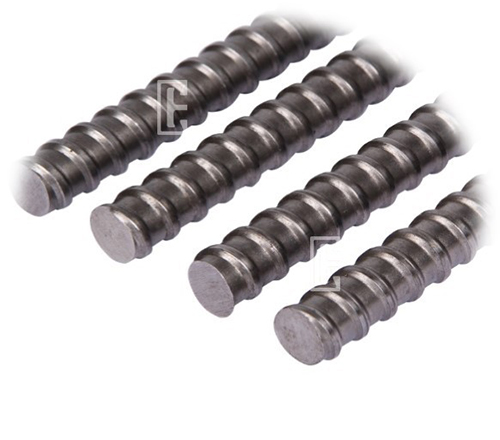

Formwork Cold Rolled Tie Rod |
||
|---|---|---|
|
|
Material |
Q235, 45# Steel, Special mixture Steel |
|
Diameter |
D12mm/ D15mm/ D20mm |
|
|
Weight |
0.75kg/meter (D12mm) 1.50kg/meter (D15mm) 2.32kg/meter (D20mm) |
|
|
Ultimate Load |
70kn-260kn |
|
|
Surface Treatment |
Galvanized or as Nature |
|
|
Packing |
Bundles |
|
|
Related Products |
Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc. |
|
|

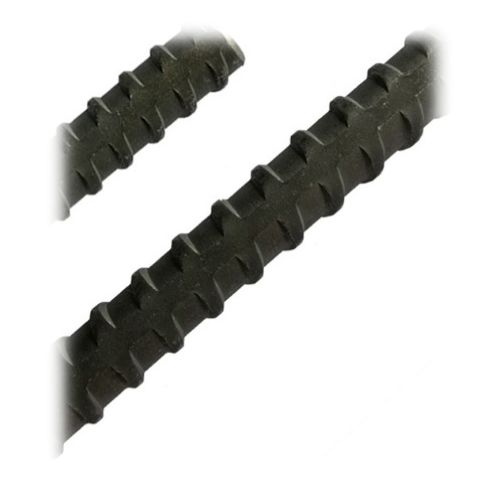

Formwork Hot Rolled Tie Rod |
||
|---|---|---|
|
|
Material |
Special mixture Steel |
|
Diameter |
DW15mm |
|
|
Weight |
1.42kg/meter |
|
|
Ultimate Load |
180kn-190kn |
|
|
Surface Treatment |
Galvanized or as Nature |
|
|
Packing |
Bundles |
|
|
Related Products |
Tie Nut, Wing Nut, Water Stop, Climbing Cone Nut, Hex Nut and etc. |
|
|

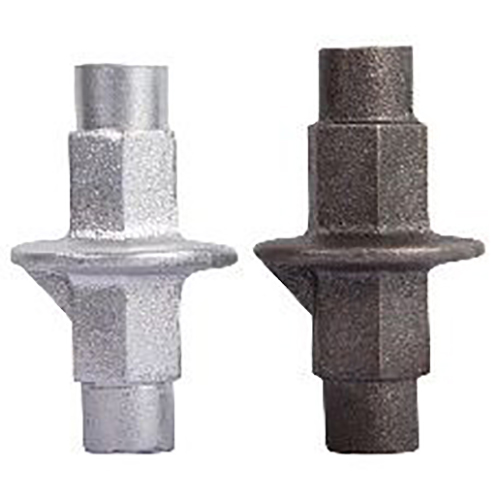

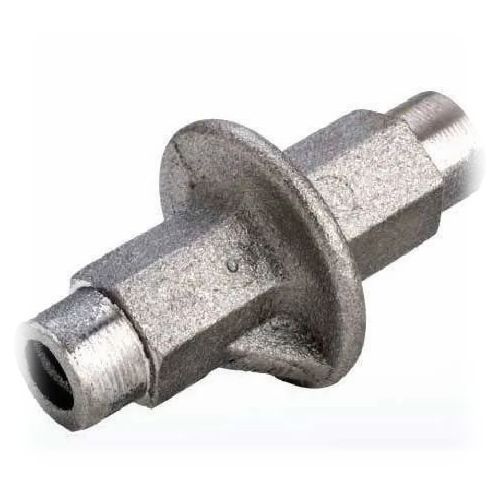

Water Stop |
|||||
|---|---|---|---|---|---|
|
Photo |
Material |
Diameter |
Weight |
Finishing |
Breaking Load |
|
|
Cast Iron |
D12 |
/ |
Self-color or galvanizing |
/ |
|
Cast Iron |
D15 |
440g 450g 500g |
Self-color or galvanizing |
180KN |
|
|
Cast Iron |
D20 |
1.0kg 1.2kg |
Self-color or galvanizing |
320KN |
|
|

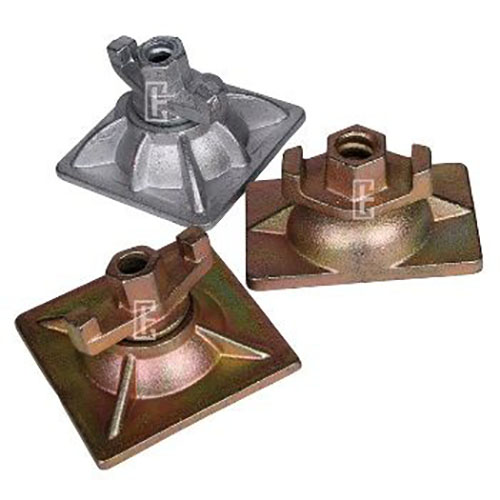

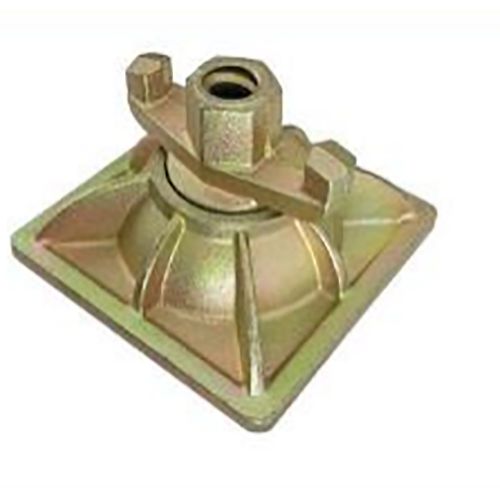

Ductile Iron Casting Formwork Combi Plate Nut/Square Slope Nut |
||||
|---|---|---|---|---|
|
|
Material |
Ductile Iron Casting |
Packing |
Bags or Pallets |
|
Diameter |
D15mm |
Ultimate Load |
Over 180kn |
|
|
Feature |
Round Plate or Square Plate |
Color |
Gold, Silver or Black |
|
|
Surface Treatment |
Galvanized or as Nature |
Capacity |
300tons per month |
|
|
Application |
Formwork Tie Rod System |
Related Products |
Tie Rod, Wing Nut, Climbing Steel Cone Nut, Hex Nut and etc. |
|
|
OEM Design is Acceptable |
||||
More Products
We have a full line of alp erection anchors, contact us for the latest technical information
|
|
|
|
Tie-Rod 12-16mm |
Anchor Rod 15-20mm |
|
|
|
|
Wing Nut with Swivel Plate 15-20mm |
Water Barrier Connector 15mm |
-
Two Hole Anchor
-
Erection Anchor
-
Spread Anchor
-
Unilateral Erection Anchor
-
Spread Anchor
-
Sandwich panel Anchor
-
Plate Ring Anchor
-
Tech Erection Anchor
-
Tech Erection Anchor with
Shear plate
-
Insulated panel anchor
-
Insulated panel anchor with Shear plate
-
Forged Insulated panel anchor
-
Erection head anchor
-
Erection head anchor with Shear plate
-
Ring Lift Uni-Anchor
-
Forged erection anchor
-
Forged erection anchor with shear plate
-
Drop Forged Foot Anchor
-
Forged Foot Erection Anchor
-
Split foot erection anchor
magnet
-
Magnetic Steel Plate
-
Threaded Bushing Magnet
-
Shuttering Magnets
-
Magnetic Triangle Steel
-
Double Head with or Without Magnet Recess Former with Rubber Grommet
-
Magnet Steel Chamfer
Packing & Shipping
Packaging method
Carton, bags, boxes, pallet, can be customized, convenient and meet customer needs.
Our Company
Chontan Industry is a leading manufacturer and supplier for various of concrete industry accessories including plastic rebar spacers, plastic rebar caps, plastic shims & packers, chamfers & fillets, metal lifting anchors, sockets, and related building accessories in China.
Since the company found, the perfect QC system have been set up accordingly. We follow 6S systems strictly and referring to the standard of IOS 9001 system. We made the full system to control the quality from sample development to order finished.
Chontan would like to cooperate with the friends from the world and set up a Win-Win relationship for both of us. You are welcome to visit our factory, and we hope we can cooperate with each other happily.
Formwork tie rod is a key accessory for poured wall projects. Chontan offer various kinds of concrete tie rods, such as Hot Rolled discontinuous thread tie rod (with 180kn breaking load) and Cold Rolled continuous tie rods (with 140kn breaking load).
The concrete tie rods can work with many formwork accessories in concrete construction. Both hot rolled and cold rolled tie rods can be used with formwork wing nuts, concrete anchor nuts, hex nuts, connection nuts, washer plates, formwork wedge clamps, formwork spring clamps, water stopper/water barrier nut, combi plate nut, plastic cones, plastic tubes, etc.

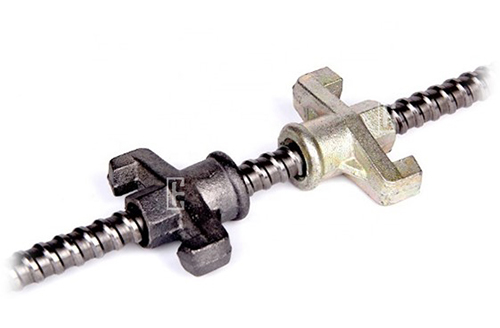

Tie Nut: We have different types of tie nuts, such as single wing nut, butterfly wing nut, two anchor wing nut, three anchor wing nut, and combination wing nut. They can be easily tightened and loosened by hand without tools because of their winged structure.
They are made by casting or forging processes and have common thread sizes of 17mm/20mm.
Tie Rod: The Tie Rod is usually made of Q235 carbon steel or 45# steel, and has a surface finish of galvanized, zinc-plated, or natural color. It has a working load ranging from 80kn to 140kn. We also provide Hot Rolled Tie Bar, which has a breaking load of 180kn.
Washer Plate: The standard sizes we offer are 120x120x10mm, 120x120x8mm, 120x110x10mm, 100x100x10mm, and we can also customize other sizes according to your needs.
All these items are widely used for concrete formwork & shuttering systems, such as wall formwork, column formwork, slab formwork, beam formwork, etc. If you are interested in formwork tie rods and related formwork accessories, please contact us. We can also do OEM service as per your requirement.
WHO WE ARE.
Chontan is but with more than 20 years’ experience on the development and production of precast concrete accessories. At Chontan, we have united the expertise, skills and production of its sister companies to create a new branch in fixing, connecting and anchoring technology to the concrete construction industry.HOW WE PERFORM.
At Chontan, we can offer you an extended range of specialist products and professional services, greater technical expertise.
Our factories try to apply automated production line to standardize the quality and decrease the cost step by step.
By bringing together the Group’s precast concrete accessories family as one global supplier, we’re serious to meet the needs of our customers, and the demands of precast concrete industry. All the precast concrete accessories you need, all in one place.
Why us
10 REASONS TO CHOOSE US
FAQ
Q: Are you trading company or manufacturer?
A: We are factory.
Q: How long is your delivery time?
A: Generally, it is 20-35 days if the goods are not in stock, it is according to quantity.
Q: What are your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shipment.
If you have another question, pls feel free to contact us as below:
Q: How You Guarantee the Quality?
We promise world-class quality and free replacement for any defectives.
Each order is tested and qualified approval before shipping.
Q: How is Your Price?
We offer competitive price to meet your specific requirements.
To create value for you and establish win-win relationship is our mission.
Q: Is OEM available?
Yes, OEM is available.
We make your drawing, sample or your concept to real products by our experienced engineers.
Q: How to Ship and What is Your Shipping Term?
By Sea, By Air.
FOB, CIF and To Door All-in Service.
If you have another question, pls feel free to contact us as below:
