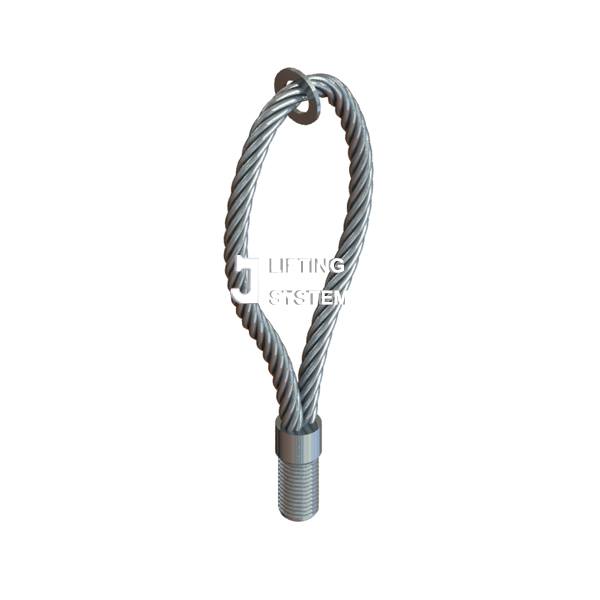

Lifting Loop
Lifting Loops are a low-cost method of raising most types of precast concrete units with any threaded lifting gear. Swaged onto a steel ferrule from high-quality steel wire. Metric and Rd threads are both available. These can be reused under specific conditions, however they are not recommended for extreme re-use.
Send Inquiry
Product Description
Lifting Loops are a low-cost method of raising most types of precast concrete units with any threaded lifting gear. Swaged onto a steel ferrule from high-quality steel wire. Metric and Rd threads are both available. These can be reused under specific conditions, however they are not recommended for extreme re-use.
|
Size |
Code |
Dimensions （mm） |
||
|
L |
d |
e |
||
|
M/Rd12 |
LSD01-12 |
155 |
6 |
20 |
|
M/Rd16 |
LSD01-16 |
155 |
8 |
24 |
|
M/Rd20 |
LSD01-20 |
215 |
10 |
33 |
|
M/Rd24 |
LSD01-24 |
255 |
12 |
36 |
|
M/Rd30 |
LSD01-30 |
300 |
14 |
54 |
|
M/Rd36 |
LSD01-36 |
340 |
18 |
67 |
|
M/Rd42 |
LSD01-42 |
425 |
20 |
78 |
|
M/Rd52 |
LSD01-52 |
480 |
24 |
95 |
Safety factor 4:1
