Plastic Recess Former and Fitting

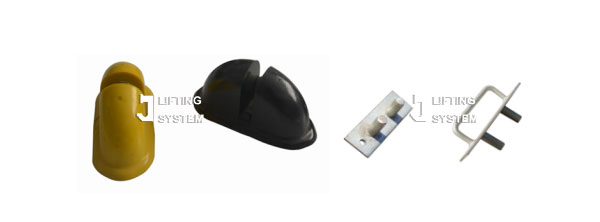

Chontan Plastic Recess Former and Fitting from China is used with any of the Ring-Lift anchors. It provides a fast and accurate void, with a consistent shape for smooth lifter attachment. Fixing Plates are fastened to the formwork and then used to hold the rubber former and erection anchor in place.
Send Inquiry
Product Description
A former (Plastic Recess Former and Fitting) is used when a hole in the formwork is undesirable. A mounting plate with four holes is used to fasten the anchor and former to the formwork by nailing, screwing, welding, or taping.
|
Load Group |
Load Range |
Code |
|
Tons |
Tons |
|
|
1.25 |
1.25 |
RFT01-1.25 |
|
2.5 |
1.4-2.5 |
RFT01-2.5 |
|
5 |
3.0-5.0 |
RFT01-5.0 |
|
10 |
6.0-10.0 |
RFT01-10.0 |
|
26 |
12.5-26 |
RFT01-26.0 |
* Different holding plate can be provided separately.
* Different color can be provided subject to the request.
