Plate Ring Anchor
Chontan plate ring anchors supplied by China are intended for usage in thin flat concrete units such as precast concrete garages, casting in floor or roof slab, and must be used in conjunction with additional reinforcement. The plate anchor with erection anchor head permits high angled pull for handling units in areas with a very restricted access hight.
Send Inquiry
Product Description
For particular uses on very thin slabs, such as casting in floor or roof slabs for precast concrete garages, GME Plate Ring Anchor is made. In regions with very low access heights, the plate anchor with erecting anchor head enables high angled pull for handling units. Plate anchor is supported by horizontal reinforcing bars laid across the square base plate.
For particular uses on very thin slabs, such as casting in floor or roof slabs for precast concrete garages, GME Plate Ring Anchor is made. In regions with very low access heights, the plate anchor with erecting anchor head enables high angled pull for handling units. Plate anchor is supported by horizontal reinforcing bars laid across the square base plate.
We have a full line of alp erection anchors, contact us for the latest technical information
-
Two Hole Anchor
-
Erection Anchor
-
Spread Anchor
-
Unilateral Erection Anchor
-
Spread Anchor
-
Sandwich panel Anchor
-
Plate Ring Anchor
-
Tech Erection Anchor
-
Tech Erection Anchor with
Shear plate
-
Insulated panel anchor
-
Insulated panel anchor with Shear plate
-
Forged Insulated panel anchor
-
Erection head anchor
-
Erection head anchor with Shear plate
-
Ring Lift Uni-Anchor
-
Forged erection anchor
-
Forged erection anchor with shear plate
-
Drop Forged Foot Anchor
-
Forged Foot Erection Anchor
-
Split foot erection anchor

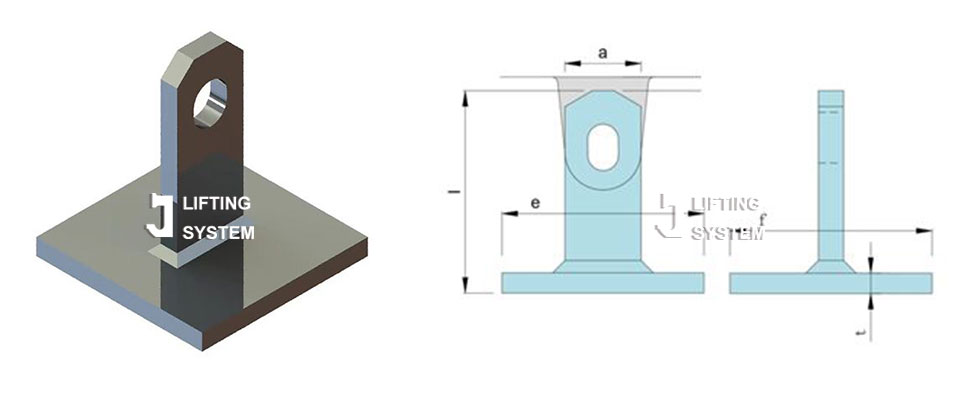

SPECIFICATIONS
|
Load Group |
Axial Load |
Code |
Dimensions (mm) |
|||
|
Tons |
Tons |
l |
a |
t |
f |
|
|
2.5 |
1.4 |
R07-014055 |
55 |
30 |
8 |
80 |
|
2.5 |
R07-025080 |
80 |
||||
|
5.0 |
5.0 |
R07-050120 |
120 |
40 |
10 |
100 |
|
10.0 |
10.0 |
R07-100160 |
160 |
60 |
12 |
140 |
* Safety Factor is 3:1.
* Stainless Steel 304 (A2)/316(A4) are available according to the request
* Surface Black(B) /Zinc Plate (Z.P) / Hot Dipping Galvanizing (H.D.G) are available

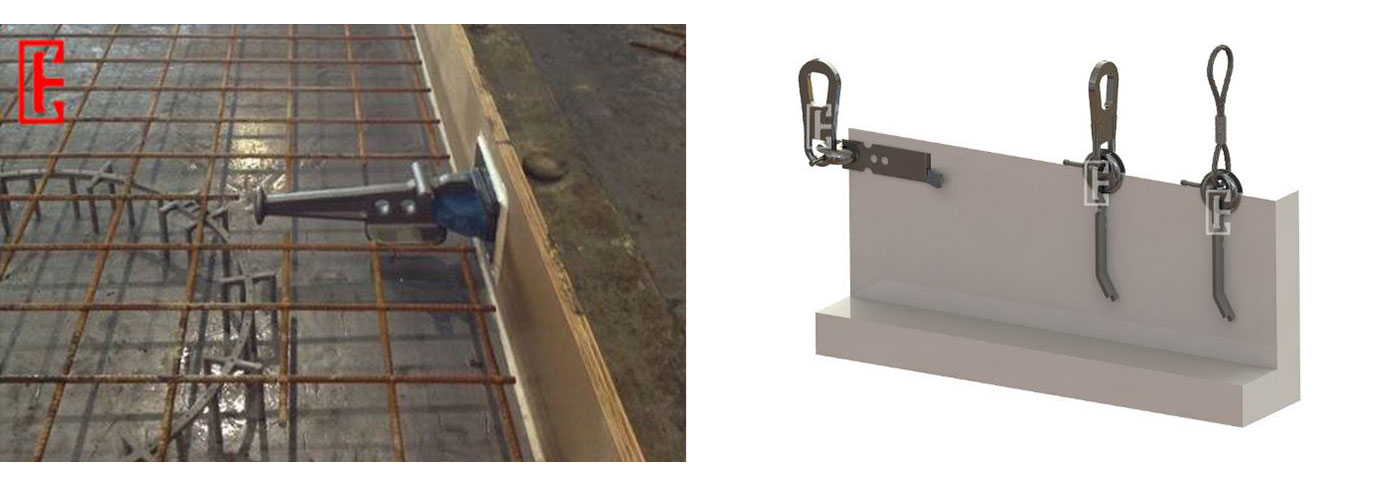

Application of Plate Ring Anchor:
◎ This Anchor is designed for special applications on the very thin slabs, such as
precast concrete garages, casting in floor or roof slab.
◎ The plate anchor with erection anchor head permits high angled pull for handling
units in areas with a very restricted access height.

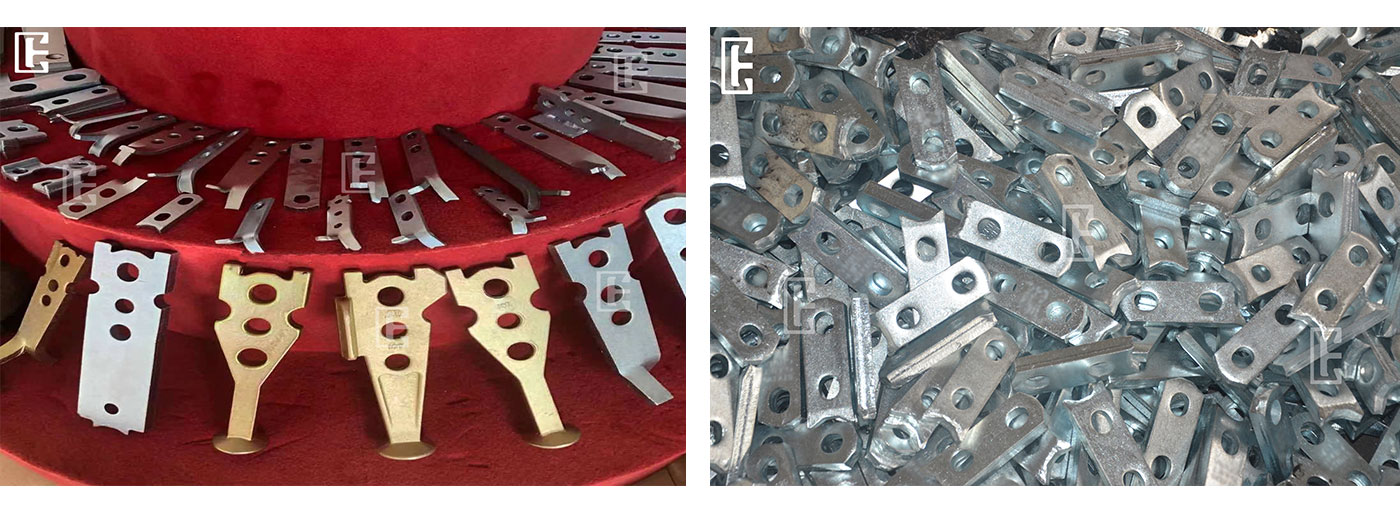

Plate Ring Anchor Display:
Factory:

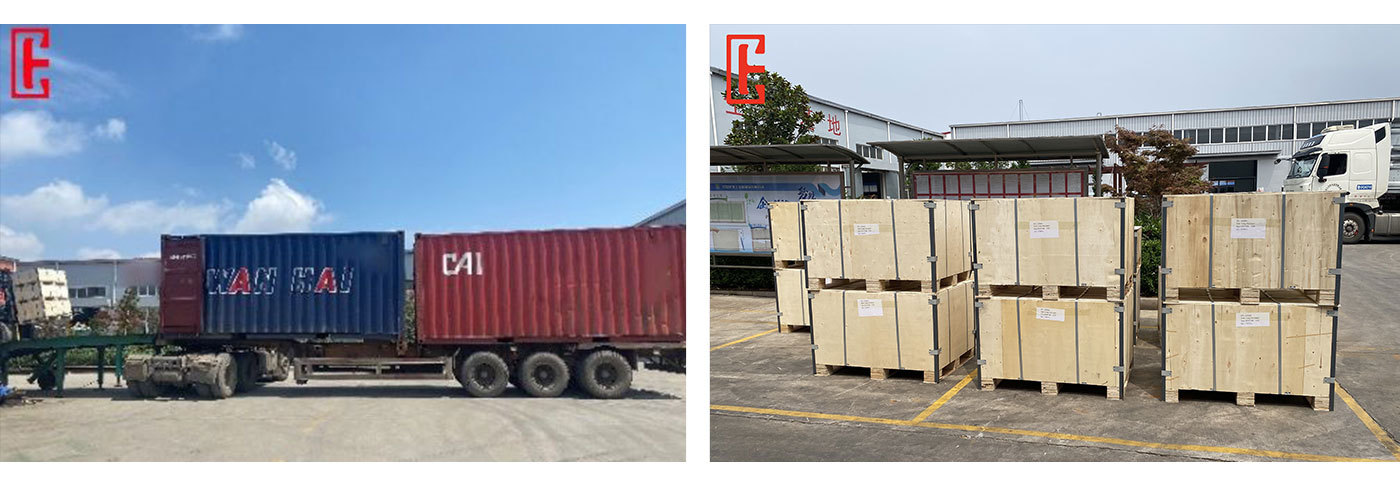

Package of Plate Ring Anchor
For small size, pack it in bags first, and then pack it in plywood box, and for big size, pack it in plywood box directly.

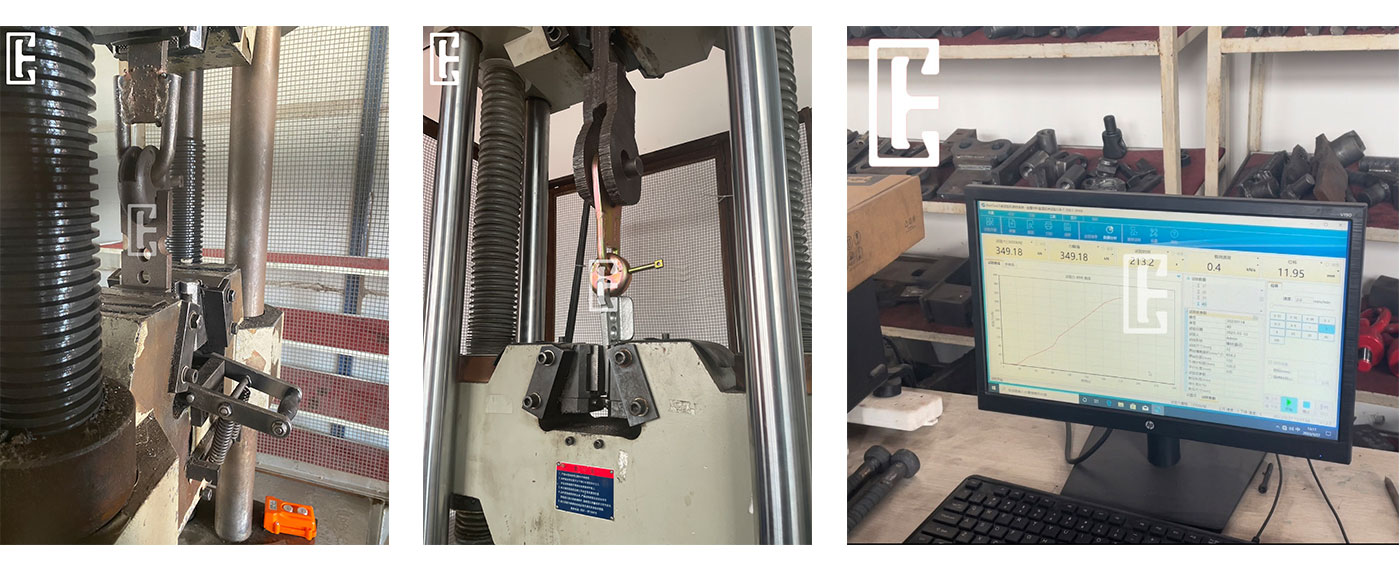

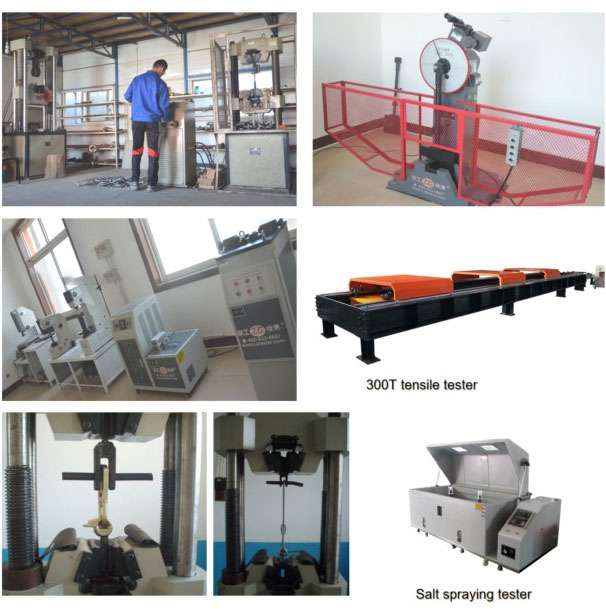

Test of Plate Ring Anchor
We do tensile testing as a QCM during the production process, perform dimensional inspection, tensile testing before to shipment, and issue EATHU reports for clients. All production processes are carried out in line with ISO9001 standards.
Certification of Plate Ring Anchor:
